| MOQ: | 1 세트 |
| Price: | USD94,000-97,000/set |
| 표준 포장: | 컨테이너 |
| 배달 기간: | 15-35 일 |
| 지불 방법: | l/c, t/t |
| 공급 능력: | 10sets/월 |
2x70KN Transmission Line Stringing Equipment Hydraulic Electric Cable Tensioner
|

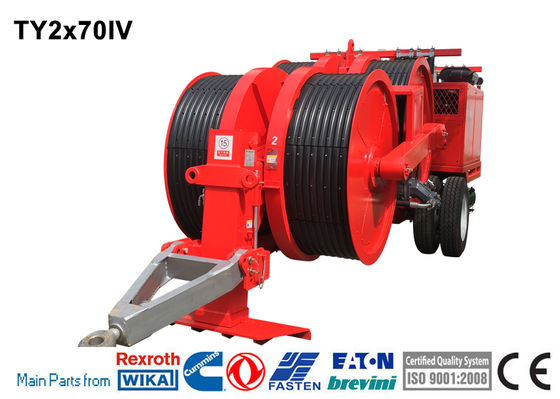

TY2x70IV Hydraulic Tensioner |
The machine allows for the tension stringing of four-bundle conductor of 630mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 720mm2 and below in flat lands, and of conductor 720mm2 in various terrains; besides, it can be used for tension stringing of OPGW or ADSS optical cable and 500kV haulage rope in various terrains |
|
Characteristics |
Bull-wheel diameter: 1500mm Max conductor diameter: 40mm Groove number: 2x8 Total weight: 12000kg Overall dimension (length*width*height):5500*2280*2700mm |
|
Performance |
Max intermittent tension: 2x70/1x140kN Max continuous tension: 2x65/1x130kN Speed at max tension: 2.5km/h Max speed: 5km/h Pull at max speed: 2x25/1x50kN Max reverse pulling force: 2*60kN/1*120kN Max reverse pulling speed: 5km/h |
|
Main configuration |
Engine: Cummins Hydraulic pump: German Rexroth/Dnish Danfoss Main motor:German Rexroth/French Leduc Speed reducer: German Rexroth / Italy Bonfiglioli Main hydraulic valves: USA Sun / Italy ATOS |
|
Engine |
Diesel: 77kw(103hp) Cooling system: water Electrical system: 24V |
|
Hydraulic Transmission |
The machine can realize step less speed. The machine is provided with tension presetting system. |
|
Configuration |
2 negative self-acting hydraulic brakes 2 hydraulic dynamometers Hydraulic oil cooling system 2 digital meter and speed counters Control instruments for hydraulic system and diesel engine Hydraulic front stabilizer Hydraulic power pack to control up to 4 separate drum stands with hydraulic motor Grounding connection point |
|
Additional Devices |
Lighting system for the trailer 4 hydraulic rope/conductor clamp (extra charge) Swivel guide rope roller Air brake system for the trailer (extra charge) Digital Speed and meter counter |
|
|
